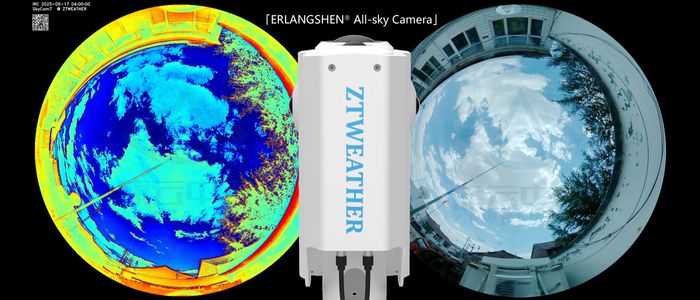

All-Sky Camera (SkyCam7P)
)
)
)
)
X Features
(1) All-solid-state, unobstructed, supports all-weather
operation;
(2) Built-in computer host, no
additional workstation installation required;
(3) Embedded automatic cloud cover
observation and analysis software;
(4) Automatic cloud image acquisition,
processing, and analysis;
(5) Automatic exposure, remote
measurement and control, and remote data uploading;
(6) Visual web-based interactive
management interface, allowing remote login to the all-sky imager for device viewing,
historical data review, and download;
(7) High-capacity host data storage and backup.
X Technical
Data
|
Parameters |
SkyCam7P |
|
Measuring principle |
Visible + Infrared 8~14μm |
|
Day
and Night |
|
|
View |
Visible 180°+
Infrared 180° |
|
Image Resolution |
Visible 5120×5120,
Infrared 1280×1024 |
|
Image Format |
JPEG, 3~8M |
|
Sampling |
1 min (default), adjustable. |
|
Cloud data |
Resolution 0.1%, Error ≤±15% |
|
Cloud Function |
Visible Cloud Cover, Infrared Cloud
Cover, Comprehensive Cloud Cover and cloud type classification |
|
Controller |
Built-in computer host, no additional
workstation installation required, capable of connecting to the network for
remote operation and monitoring via terminal. |
|
Memory & System |
500G, Linux, TCP/IP Interface |
|
Operation |
Temperature
-40℃~+60℃, Humidity 0~100%RH |
|
Power Supply |
AC100-240V,90W |
|
Power Consumption |
Main
Unit <35W, Defrosting Function <45W(extensible), Ventilation Function
<10W |
|
Dimension |
300L*155W*378H mm |
|
Weight |
<15kg |
|
Remarks |
We are committed
to continuously upgrading both the hardware and software of our products to
ensure optimal solutions for you. Please note that product dimensions and
weight may vary depending on functionality and customization requirements,
and the final specifications shall be subject to the actual delivered product. |
