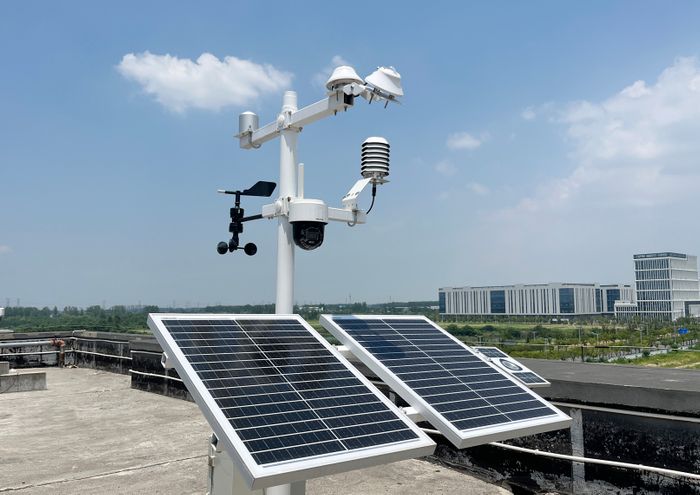

High-end PV Weather Station (ZTW-8)
)
X Advantages
l High precision with reliable and
stable performance;
l Integrated with data acquisition,
wired or wireless data transmission;
l Optional local and cloud data
storage;
l Easy operation and maintenance.
X Technical data
|
Model |
Parameters |
Description |
|
ZTP series |
Pyranometer (GHI, GTI and Albedo) |
Level/ISO 9060:2018: Class A Measuring range: 0~4000 W/m² Response time(95%): < 0.5s Wavelength Range: 285~3000nm |
|
ZTD series |
PV soiling sensor |
Principle: light scattering Soiling ratio accuracy: 90%~100%: 1%, 80%~90%: 2%, 50%~80%: 4% Non-stability: 1%/year Communication: RS485 Modbus, 4G(optional) Power supply:DC 8-15V@<3w |
|
PVT |
PV panel temperature sensor |
Measuring range:-55℃~+125℃ Measuring accuracy: ±0.5°C |
|
ZTE-3 |
All-in-one air temperature, humidity, and pressure
sensor |
Temperature range: -40℃~+80℃ Temperature accuracy: ±0.2℃ Humidity range: 0~100%RH Humidity accuracy: ±1.8%RH Pressure range: 300~1200hPa Pressure accuracy: ±0.3hPa |
|
ZTWind |
Wind speed and direction sensor |
Wind speed range: 0~75m/s Wind speed accuracy: ±0.1m/s Wind direction range: 0~360° Wind direction accuracy: ±3° |
|
ZTR series |
Rainfall sensor |
Measure range: 0~4mm/min Accuracy: ±15% Operation temperature: 0℃~+80℃ |
|
ZTDL1X |
Data logger |
Digital input: 3 (RS-485) Analog input: 4 (0~100mV) Temperature input: 4 (PT100) Output interface: 2 (RS-485) Wireless connection: 4G(option) Anti-surge unit |
