NAVIMET SAS : Booth A710

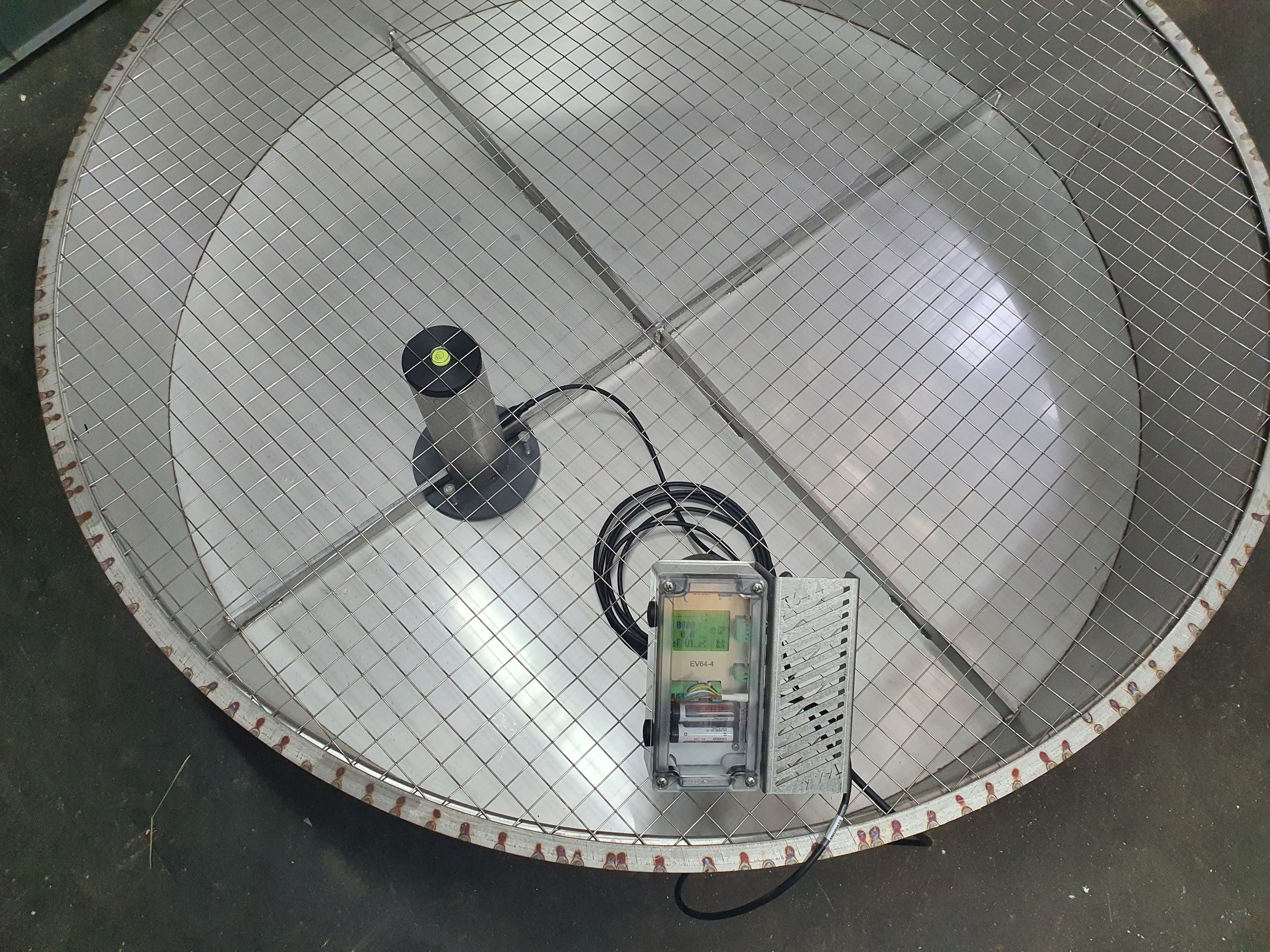

Navimet will present its new digital Class A Evaporation pan designed to make measurements associated with digital sensors fully automatic.

This Kit consists of a 4-channel EV64-4 terminal, a water level probe, a floating thermometer, a surface anemometer and a rain gauge.

It performs automatic measurements of water level, water temperature, surface wind and rainfall.

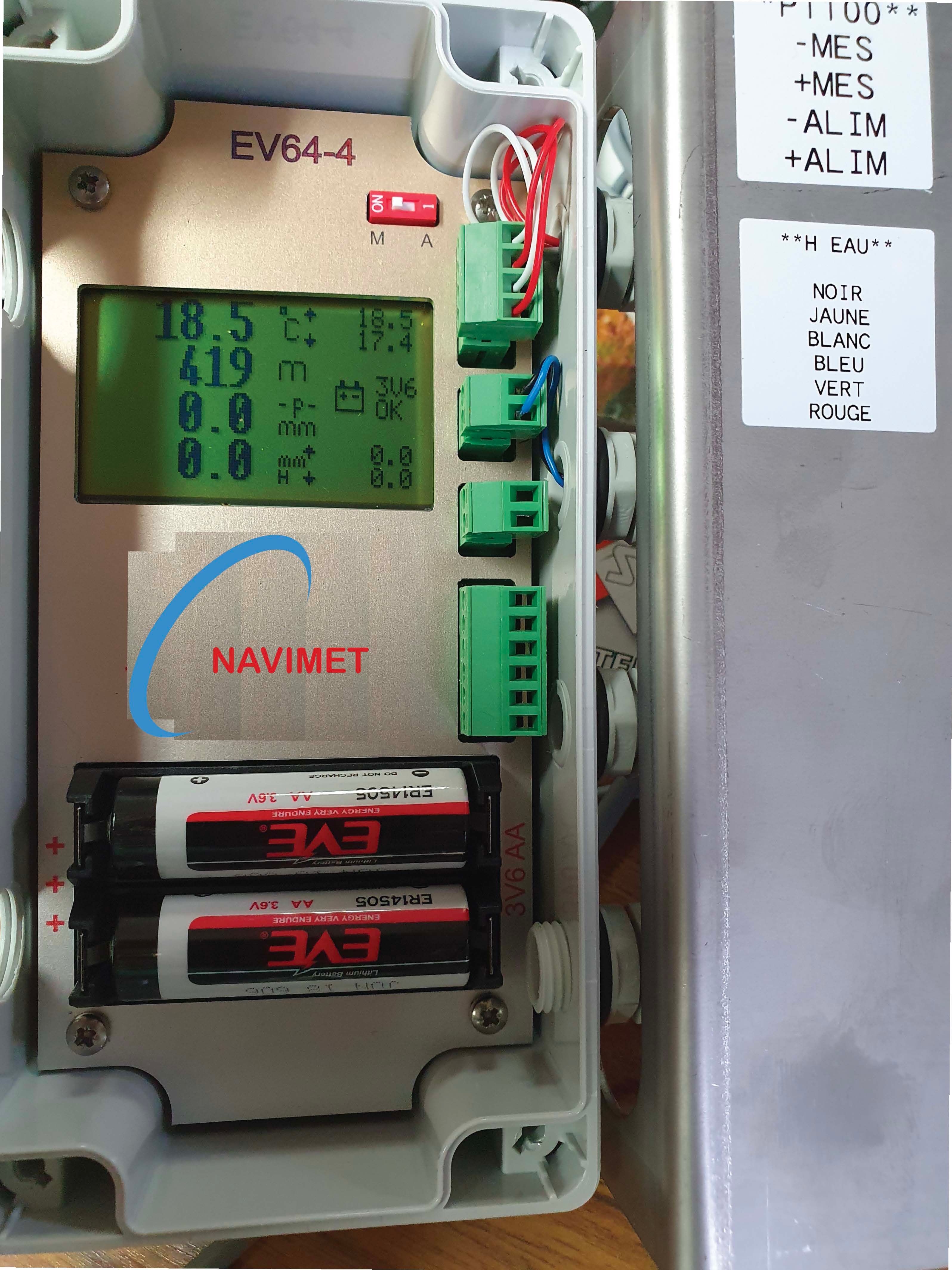

A direct reading of these measurements is possible by viewing the four screens of the EV64-4 terminal.

These measurements are also sent in real time or on triggering to a remote station via an RS422 port.

The terminal automatically measures and allows the operator to visualize on the EV64-4 screen the following data :

• Water height in 1/10th thanks to an Ultrasonic probe (US1422) with remarkable precision compared to the probes on the market.
• Temperature thanks to a float-mounted PT100 probe.
• Cumulative rainfall using a PLU3029 rain gauge.
• Surface wind speed through an APM33 contact anemometer.
